Position Limit Switch  |  SKU: IPC0810239

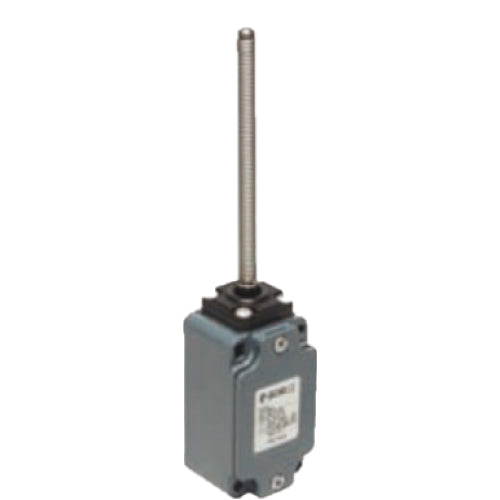

PF25763600: DIN Central Spring Rod With Ferrule Limit Switch 1NO + 1NC

$492.55 CAD
Shipping calculated at checkout.

Description

PF25763600: DIN Central Spring Rod With Ferrule Limit Switch 1NO + 1NC

TER’s DIN position limit switch contains nylon (reinforced with fiberglass) thermoplastic heads. This switch also contains aluminum enclosures.

These models contain water resistant components in order to protect your unit against dust and water.

This central spring rod with ferrule design requires the PRSL0031XX switch. This switch has 1 normally open and 1 normally closed configuration. The microswitch type is a double break, slow action.

Features:

  • Certifications: CE marking and EAC
  • Size: 104x40x43 mm, with 4 fixing holes
  • Mechanical life of switches: 1 million operations
  • Operation frequency: 3600 operations/hour max
  • Extreme temperature resistance: -25°C to +70°C

Technical Specifications:

  • Rated operational current: 3 A
  • Rated operational voltage: 250 V
  • Rated thermal current: 10 A
  • Rated insulation voltage: 300 V~
  • Mechanical life: 1x106 operations
  • Connections: Screw-type Terminals
  • Wires: 1x2.5 mm2 , 2x1.5 mm2
  • Tightening torque: 0.8 Nm

*View attached image for actuating travel diagram
