Position Limit Switch  |  SKU: IPC0810218

PF33715100: T-Type Limit Switch With 3 Maintained Positions

$797.55 CAD
Shipping calculated at checkout.

Description

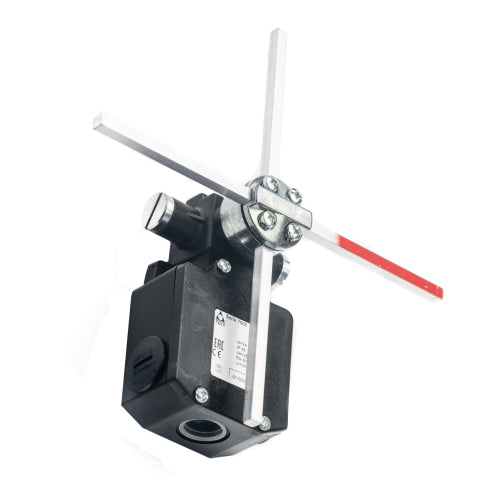

PF33715100: T-Type Limit Switch With 3 Maintained Positions

TER’s cross-position limit switches are engineered to control the movement of both traverse applications and machine tools with high complexity such as overhead cranes or hoists.

This switch is made with dust and water-resistant materials in order to ensure a long mechanical life and top tier performance!

The PF33715100 is an X-FRC limit switch with a ‘3 maintained’ position. This model is equipped with a ‘T’ type rod.

Features:

  • Opening: Snap action 1NO+1NC switch.  Positive opening NC contact for safety functions
  • Mechanical Life: 1 million operations
  • Temperature Resistance: -25°C to +70°C
  • Certifications: CE - UL - (c)UL

*View attached image for actuating travel diagram

Technical Specifications:

  • Operation Frequency: max. 3600 operations/ hour
  • Rated operational current: 3 A
  • Rated operational voltage: 250 Vac
  • Rated thermal current: 10 A
  • Rated insulation voltage: 300 Vac

For dimensions visit this page

Delivery and Shipping

Shipping calculated at checkout. View out shipping policy.

Measurements
