BT7557-2A: 75HP@575V Two Speed Soft Start (Discontinued)

$4,178.60 CAD
Shipping calculated at checkout.

Description

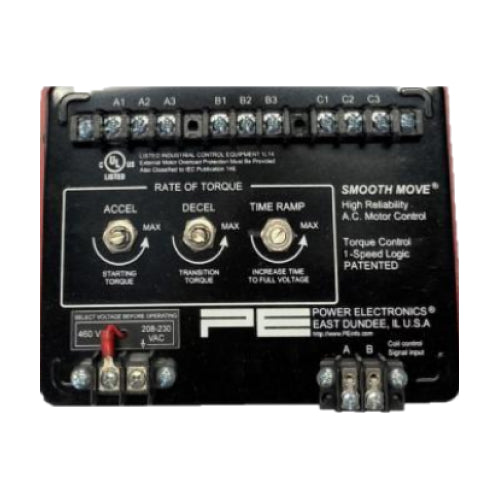

BT7557-2A: 75HP@575V Two Speed Soft Start

This model is a two-speed Smooth-Move® model that is ideal for travel applications such as large trolleys and bridges. This device eliminates belt, drive train, and gear wear and tear.

The BT Series® by Power Electronics replaces ‘cushion start’ systems such as timers, inductors and resistor ballasts.

Features:

  • Size: 28”x 12”x 5.25”
  • Phase loss protection on input
  • Time and torque settings for motor soft ramp
  • Simple installation
  • Saves money on productivity and machinery life
  • Arc-Elimination

Technical Specifications:

  • VAC: 460-575
  • Certifications: (c)UL
  • HP: 75hp(55kw)
  • *Operating Temperature: 14°F-131°F(-10°C-55°C)

*Shield against radiant heat source
