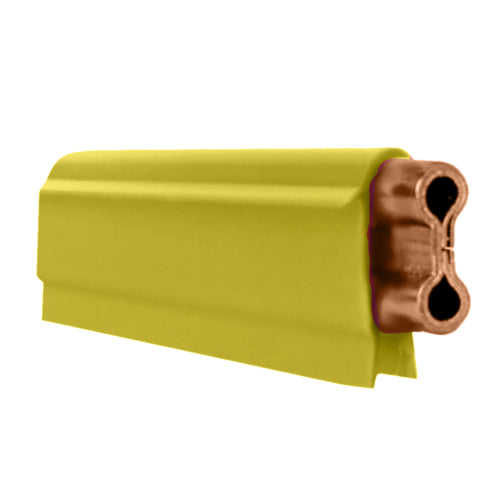

FE-3008-2XHT: 350 Amp Figure Eight Rolled Electrolytic Copper 10 ft (High Temperature)

FE-3008-2XHT: 350 Amp Figure Eight Rolled Electrolytic Copper 10 ft (High Temperature), Click to read Shipping Policy

The Figure 8 Electrical Conductor Systems by DUCT-O-BAR are for overhead cranes, trolleys, monorails, hoists, conveyors, automatic stacker-retrieval systems... and any application that requires a reliable, safe, and economical moving power system.

Duct-O-Wire Figure 8 Conductor Bars are complete as assemblies that are equipped with a 600-volt conductor bar (10ft), an insulating cover, splice cover, and connector pins or joint clamps as applicable.

This is a rolled electrolytic copper conductor bar that is rated at 350 Amps. This bar is equipped with a joint cover, and is suitable for the indoors.

These high temperature systems are to be used in environments that have an ambient temperature that reaches 138°C (280°F). High temperature systems have a Yellow Polycarbonate Insulating Cover.

• Weight: 6.75lbs (3.06kg)
• Size: 10ft (120”)
