399355: 100 Amp Ground Collector (Green)

399355: 100 Amp Ground Collector (Green)

Insul-8’s Safe- Lec 2® series is the new standard in the overhead crane, monorail, and material handling electrification industry.

Safe-Lec 2® collectors ensure positive tracking due to its v-contact. The collectors accurately track the conductor bar groove through its wide range of motion, allowing for the shoe to make continuous, superior conductivity with the rail.

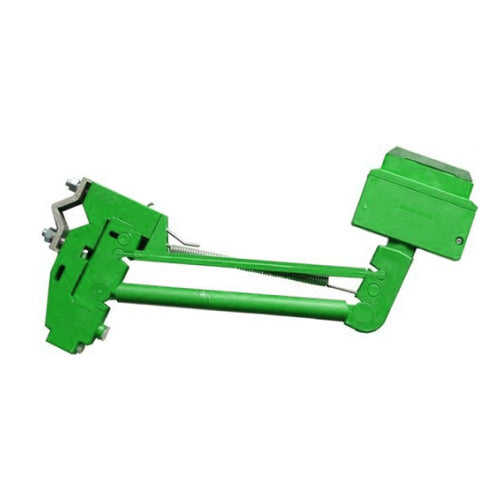

This is a 100 Amp ground collector (green). There is a collector shoe shunt wire that is imbedded within the arm of the collector. There is incoming cable that is connected to the terminal lug located at the collectors’ base. This collector does not come with a deflector.

 Safe-Lec 2® Features:

• IP2 “finger safe” operation; no live parts exposed
• Bolted Splice that Provides Durability and Longevity
• Easy System Configuration
• Positive Tracking
• Versatile covers

Technical Specifications:

• Curve: 60” min
• Max Speed: 1,200 feet per minute (365.8 meters/minute)
• Current Capacity: 100 Amps
• Weight: 0.74lbs (0.78kg)

Refer to this page for installation information.
