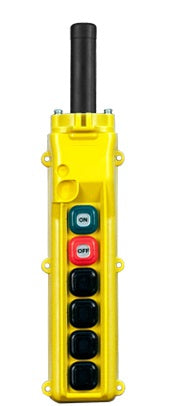

34228: 6-button enclosure with four two speed switches & moment on/off

34228: 6-button enclosure with four two speed switches & moment on/off

Insul-8’s Series 80 provides pendants that are engineered to be ergonomic, durable and top quality!

The 80 Series Pendants are customizable, with options ranging from 2 buttons to 12 buttons. These pendants are also available in a duplex configuration which allows the pendant to contain 24 buttons!

From workstations to assembly lines, these pendants can be utilized for your every need. The 80 Series allows for control over monorails, overhead cranes, hoists, conveyors, elevators, and other industrial machines.

Technical Specifications:

• Certifications: UL/cUL
• Rating: NEMA 4X (IP65) (outdoor or indoor use)
• Switch Contacts Rating: at 5 A (at 120 VAC)
• Operating Temperature: 5F- 160 F (-15 C-70 C)

Features:

• High impact ABS enclosure
• Two-piece design to simplify field wiring
• Shock resistant to 100 g
• Double-insulated (withstands 2500V)
• Silicon-booted buttons
• Easy-force buttons with positive detents for speed selections

Model Specifications:

• # of Buttons: 6
• Switch Arrangement: Four 2-Speed, With Momentary On/Off (Red, Green)
