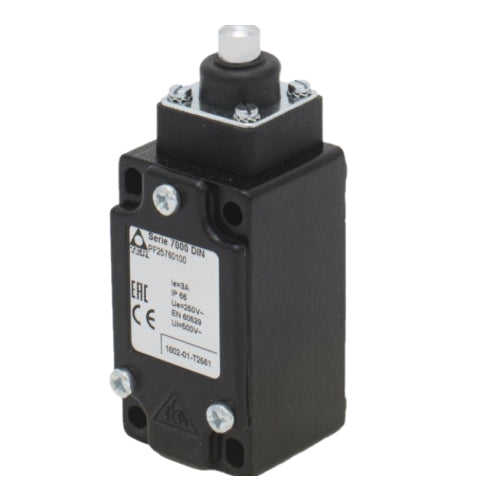

PF25760800: DIN Ball Plunger Limit Switch With 1NO + 1NC Slow Action Contact

PF25760800: DIN Ball Plunger Limit Switch With 1NO + 1NC Slow Action Contact

TER’s DIN position limit switch contains nylon (reinforced with fiberglass) thermoplastic heads. This switch also contains aluminum enclosures.

These models contain water resistant components in order to protect your unit against dust and water.

This ball plunger design requires the PRSL0031XX switch. This switch has 1 normally open and 1 normally closed configuration. The microswitch type is a double break, slow action.

Features:

• Certifications: CE marking and EAC
• Size: 104x40x43 mm, with 4 fixing holes
• Mechanical life of switches: 1 million operations
• Operation frequency: 3600 operations/hour max
• Extreme temperature resistance: -25°C to +70°C

Technical Specifications

• Rated operational current: 3 A
• Rated operational voltage: 250 V
• Rated thermal current: 10 A
• Rated insulation voltage: 300 V~
• Mechanical life: 1x106 operations
• Connections: Screw-type Terminals
• Wires: 1x2.5 mm2 , 2x1.5 mm2
• Tightening torque: 0.8 Nm

*View attached image for actuating travel diagram
