PF33700100: Rod Limit Switch With Spring Return

PF33700100: Rod Limit Switch With Spring Return

TER’s cross-position limit switches are engineered to control the movement of both traverse applications and machine tools with high complexity such as overhead cranes or hoists.

This switch is made with dust and water-resistant materials in order to ensure a long mechanical life and top tier performance!

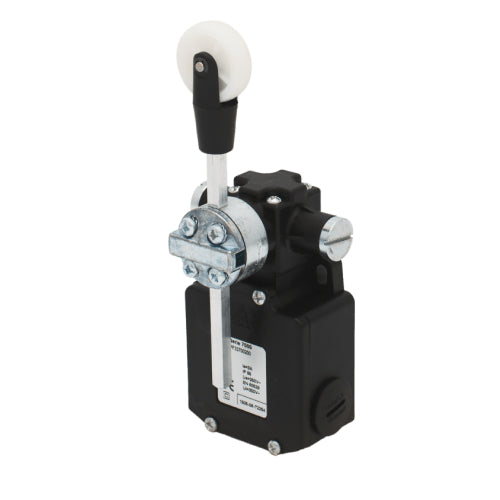

The PF33700100 is an X-FRZ limit switch with a spring return position. This model is equipped with a rod.

Features:

Opening: Snap action 1NO+1NC switch. Positive opening NC contact for safety functions

Mechanical Life: 1 million operations

Temperature Resistance: -25°C to +70°C

Certifications: CE - UL - (c)UL

Technical Specifications:

Operation Frequency: max. 3600 operations/ hour

Rated operational current: 3 A

Rated operational voltage: 250 Vac

Rated thermal current: 10 A

Rated insulation voltage: 300 Vac

For dimensions visit this page

*view attached image for actuating travel
