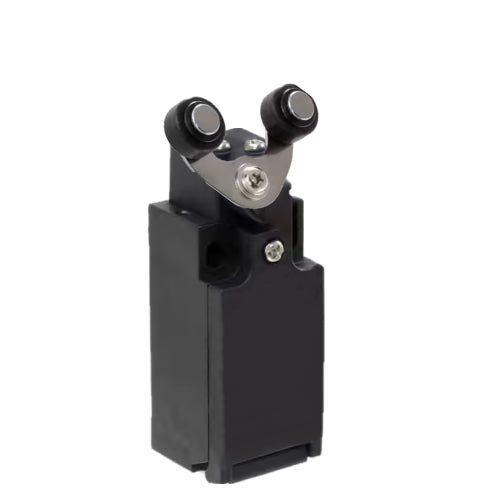

PF33787100: Standard Double Lever Limit Switch With 1NO + 1NC Contact

PF33787100: Standard Double Lever Limit Switch With 1NO + 1NC Contact

TER’s Standard Position Limit Switches effectively control complex machinery tools such as travelling overhead cranes and hoists.

These switches are engineered to protect your unit against dust and water.

Standard Limit Switches are to be used in the automation, building and entertainment industry. These position limit switches have 15 different heads/actuators.

This particular model has: a double lever head

*View attached image for actuating travel diagram

Features:

• Certifications: CE - UL - (c)UL
• Micro-Switch Type: PRSL0036XX 1NO+1NC snap action
• Opening: Positive opening NC contacts
• Switch Life: 1 million operations
• Operation Frequency: 3600 operations/hour max
• Extreme Temp. Resistance: -25°C to +70°C
