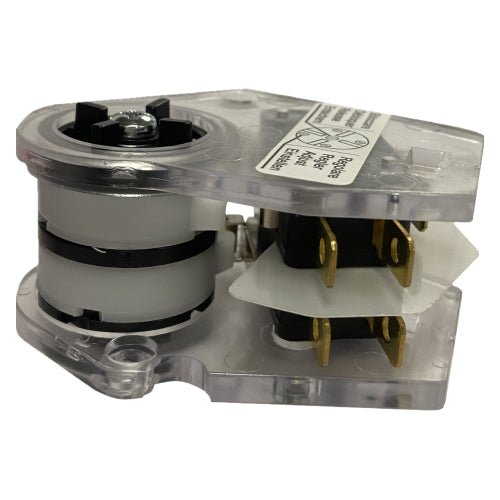

PRFC0008PEC: Cam Block With 2 Pointed Cams and 2 PRLS0003XX

PRFC0008PEC: Cam Block With 2 Pointed Cams and 2 PRLS0003XX

This is a standard cam set with 2 PRSL0003XX (spade terminals) switches and 2 A cams.

General Features:

• Gear motor which transfers movement through an input reduction stage
• Accurate adjustment of cams
• Stainless Steel transmission and gear driving shafts, self-lubricating technopolymer gears and driving bushings,technopolymer base and cover
• Positive Opening NC and NO contacts for safety functions
• Sintered bronze bushings at base to optimize shaft rotation and prevent rubbing with plastic material

Technical Specifications:

• Mechanical Life: 1 million operations
• IP Protection Degree: IP42,IP65 or IP66, IP67 and IP69K
• Extreme Temp. Resistance:(-40c°)- (+80C°)
• Certifications: CE, cURus, EAC
