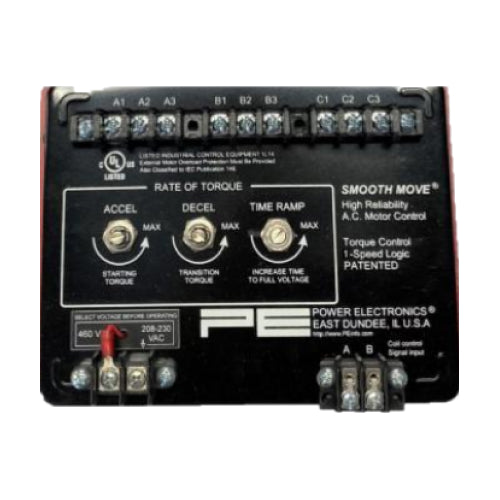

BT7557-1A: 75HP@575V Single Speed Soft Start (Discontinued)

BT7557-1A: 75HP@575V Single Speed Soft Start

This model is a single-speed Smooth-Move® model that is ideal for travel applications such as large trolleys and bridges. This device eliminates belt, drive train, and gear wear and tear.

The BT Series® by Power Electronics replaces ‘cushion start’ systems such as timers, inductors and resistor ballasts.

Features:

• Size: 28”x 12”x 5.25”
• Phase loss protection on input
• Time and torque settings for motor soft ramp
• Simple installation
• Saves money on productivity and machinery life
• Arc Elimination

Technical Specifications:

• VAC: 460-575
• Certifications: (c)UL
• HP: 75hp(55kw)
• *Operating Temperature: 14°F-131°F(-10°C-55°C)

*Shield against radiant heat source
