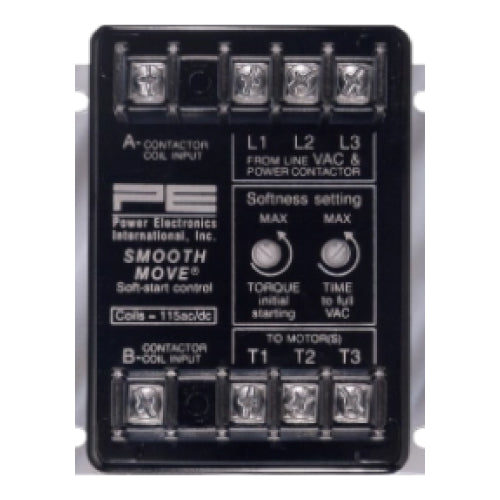

SM5A2L: 8 Amp 5HP @ 480V 2.5HP@230V 2HP@208V Two Speed Soft Start

SM5A2L: 5 Amp 5HP @ 480V 2.5HP@230V 2HP@208V Two Speed Soft Start

This is a two-speed Smooth-Move® model that is ideal for all systems, whether they reverse or not. This device eliminates belt, drive train, and gear wear and tear.

This Power Electronics device is designed to be compatible with trolleys, overhead doors and cranes, bottling equipment, monorail, conveyors, textile machines etc.

Features:

• Size: 5”x 5”x 3.625”
• Phase loss protection on input
• Time and torque settings for motor soft ramp
• Simple installation
• Saves money on productivity and machinery life
• Arc Elimination

Technical Specifications:

• VAC: 208-460
• Certifications: (c)UL
• Voltage: 5amps
• HP: 1hp-2hp (0.75kw-1.5kw)
• *Operating Temperature: 14°F-131°F(-10°C-55°C)

*Shield against radiant heat source
