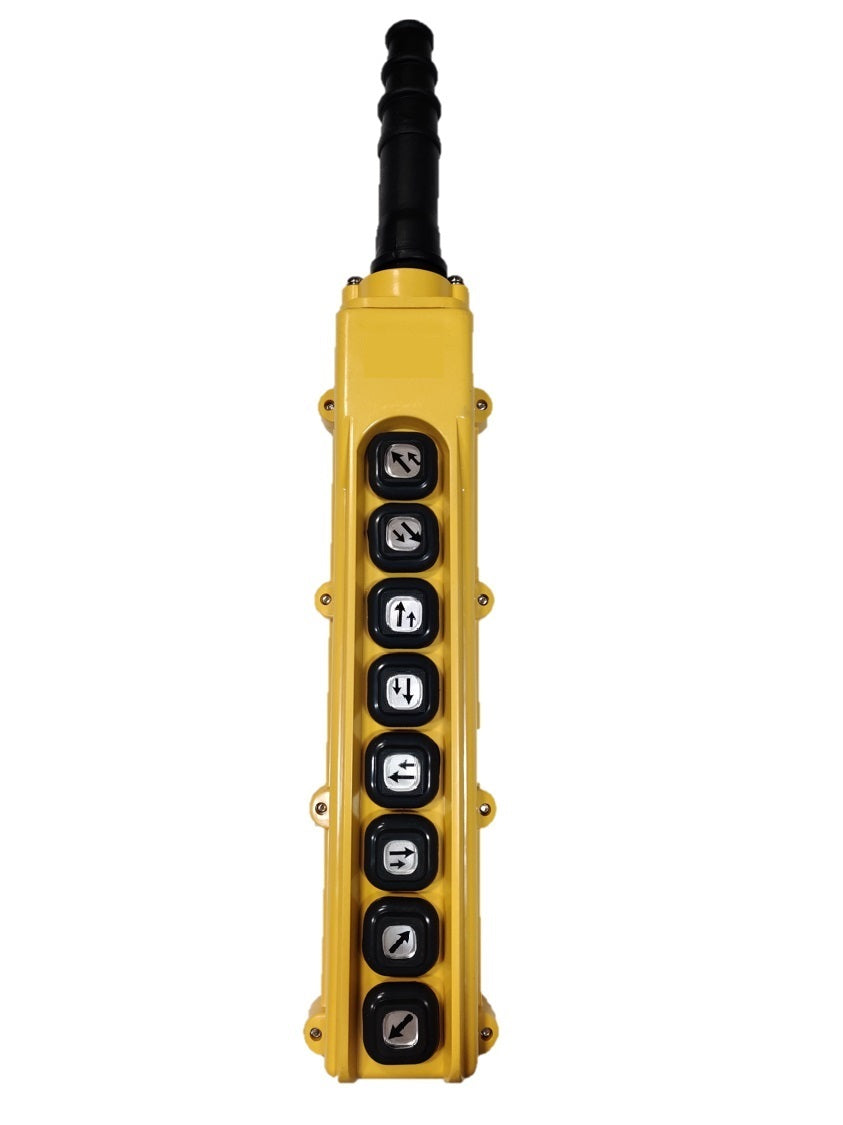

B-84-3: 8 Button Pendant Station. 2 x 1 Speed Contact Elements and 6 x 2 Speed Contact Elements

B-84-3: 8 Button Pendant Station. 2 x 1 Speed Contact Elements and 6 x 2 Speed Contact Elements

The highly customizable B-80 Series by Crane-controls.com are made specifically for industrial overhead cranes, hoists, monorails, conveyors, and applications alike.

The B-80 Series is made with both impact and wear resistant materials as well as moisture and debris resistant buttons.

This model is available in multiple configurations from 1-10 buttons, all in a singular column.

This is an 8-button pendent with 4 x 1-speed contact elements and 4 x 2 speed contact elements.

Features:

• Multiple Button Arrangements
• Indoor and Outdoor Use
• 1 or 2 Speed Contacts
• Ergonomic Positive Detent Switches

Technical Specifications:

• Operational Temperature: -15°C-70°C (-5°F-160°F)
• Rated Current: 5A at 120VAC
• Protection Degree: IP65
• Cable Entry: Rubber cable sleeve 18mm or 23 mm
• Shock Resistance: 100 g
• Approval: CSA file #2618449
• Pilot Rating: CSA pilot duty B 150 (30A make/3A break @120VAC
