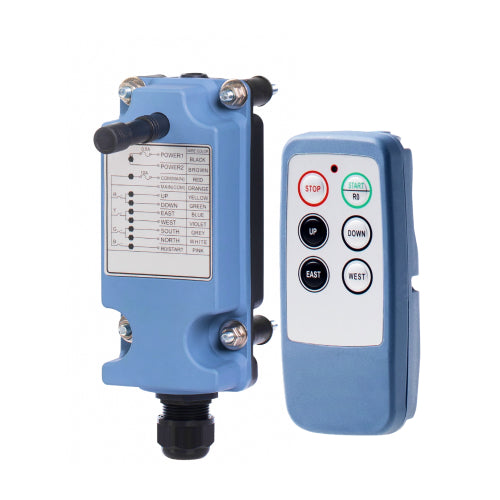

700PR06-DC: TM4000 Transmitter & Receiver Kit,12/24 VDC

700PRO6-DC: TM4000 Transmitter & Receiver Kit,12/24 VDC

Control Chiefs’ TeleChief Series are ideal for conveyors, life tables, winches, gates and boat lifts. These compact, hand-held remote controls are available in multiple configurations, from 4-buttons-8-buttons.

This kit (DC) is equipped with an ON/OFF, single speed, 2-motion transmitter as well as a receiver rated at 12/24VDC.

Features:

• Operation Frequency: 310-330MHz fully compliant with FCC Part 15 & CE European directive
• Operation Temp: -45°C- (+80°C)
• Rated Enclosures: NEMA 4/IP65
• Range: Up to 328ft. (100m)

Benefits:

• Glass Fiber/ABS Obstruction
• Error Detection and Correction
• Efficient Power Management

Receiver Specifications

• Contact: Power-on/Mainline Contact
• Cable: Pre-wired 6ft. (1.83m) cable
• Control Relay Rating: 10A @ 125 VAC, 5A @ 250 VAC, 8A @ 30 VDC
• Voltages: Available in AC or DC power

Transmitter Specifications

• Weight: Lightweight (155g) With Batteries
• Battery: 2 AA Alkaline, long battery life, low power consumption
• Features: low power indicator, jammed button detection
• Antenna: Internal
• Design: Shock Resistant Design
