CA110HHX10: 110 Amp High Heat Conductor With Joint Kit x 10 feet (Red)

CA110HH: 110 Amp High Heat Conductor With Joint Kit x 10 feet (Red), Click to read Shipping Policy

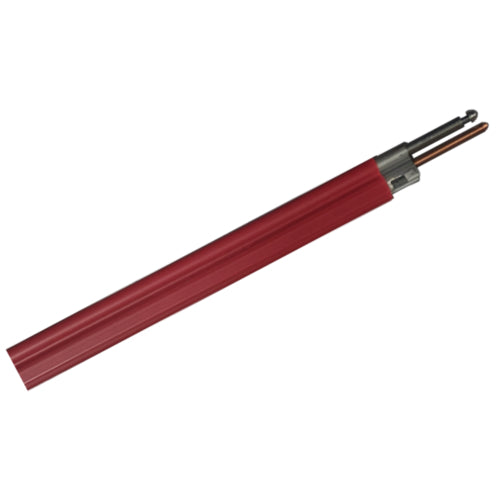

The CA110HH is high heat conductor bar with a joint kit that is 10 feet in size. The bar is comprised of galvanized steel. This model is red in colour. This indoor conductor bar safely transfers power to hoists, conveyers, cranes and monorails. Due to this product being apart of the Series C, it comes with a joint kit which simplifies the installation process. The bar itself has skin-tight insulation which runs cooler and will not deform under the pressure of clamping!

This product has a 110-ampacity range and has a 600 voltage limit. The metal guideways and the C shaped contact surfaces ensure positive tracking for the collector shoe, resulting in strong contact throughout the entirety of the system!

Product Features:

Bar Material: Galvanized Steel

Normal Current (amps): 110

Max. Voltage: 600

DC Resistance (Ohms/ ft): 0.00050

AC impedance (Ohms/ft at 60Hz): 0.000970

Wt lb/ft (kg/m): 0.48

In need of some more amps? Check out the CA250HH!
