CA250: 250 Amp Indoor Conductor With Joint Kit x 10 feet (Orange)

CA250: 250 Amp Indoor Conductor With Joint Kit x 10 feet (Orange), Click to read Shipping Policy

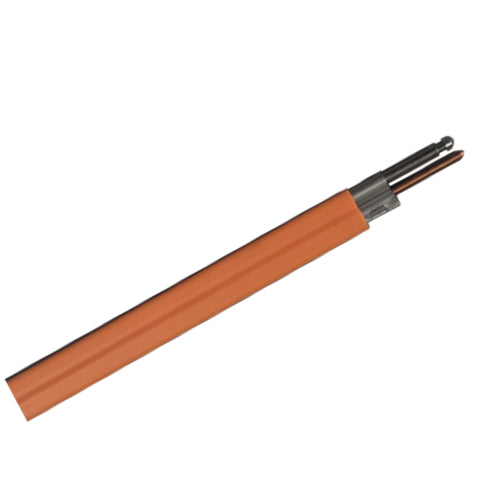

The CA250 is an indoor conductor bar with a joint kit that is 10 feet in size. The bar is comprised of a steel and copper laminate. This model is orange in colour. This outdoor conductor bar safely transfers power to hoists, conveyers, cranes and monorails. Due to this product being apart of the Series C, it comes with a joint kit which simplifies the installation process. The metal guideways in this bar assure positive tracking of the collector shoe!

This product has a 250-ampacity range and has a 600 voltage limit. The C shaped contact surfaces allow for better tracking, resulting in strong contact throughout the entirety of the system. The bar itself has skin-tight insulation which runs cooler and will not deform under the pressure of clamping!

Product Features:

Bar Material: Steel/Copper Laminate

Normal Current (amps): 250

Max. Voltage: 600

DC Resistance (Ohms/ ft): 0.00127

AC impedance (Ohms/ft at 60Hz): 0.000131

Wt lb/ft (kg/m): 0.50

Looking for a conductor bar specific for high heat? Check out the CA250HH!
