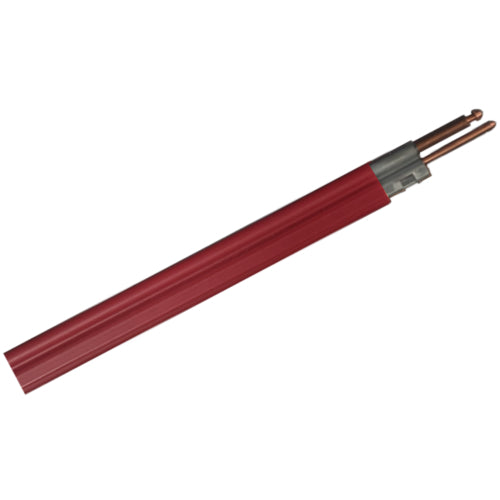

CA250HH: 250 Amp High Heat Conductor With Joint Kit x 10 feet (Red)

CA250HH: 250 Amp High Heat Conductor With Joint Kit x 10 feet (Red), Click to read Shipping Policy

The CA250HH is a high heat conductor bar with a joint kit that is 10 feet in size. The bar is comprised of a steel and copper laminate. This model is red in colour. This high heat conductor bar safely transfers power to hoists, conveyers, cranes and monorails. Due to this product being apart of the Series C, it comes with a joint kit which simplifies the installation process. The bar itself has skin-tight insulation which runs cooler and will not deform under the pressure of clamping!

This product has a 250-ampacity range and has a 600 voltage limit. The metal guideways and the C shaped contact surfaces ensure positive tracking for the collector shoe, resulting in strong contact throughout the entirety of the system!

Product Features:

Bar Material: Steel/Copper Laminate

Normal Current (amps): 250

Max. Voltage: 600

DC Resistance (Ohms/ ft): 0.00127

AC impedance (Ohms/ft at 60Hz): 0.000131

Wt lb/ft (kg/m): 0.50

In need of more amps? Check out the CA350X10HH!
