CA300X10G: 300 Amp Ground Conductor With Joint Kit And Keeper Clip x 10 feet (Green)

CA300X10G: 300 Amp Ground Conductor With Joint Kit And Keeper Clip x 10 feet (Green), Click to read Shipping Policy

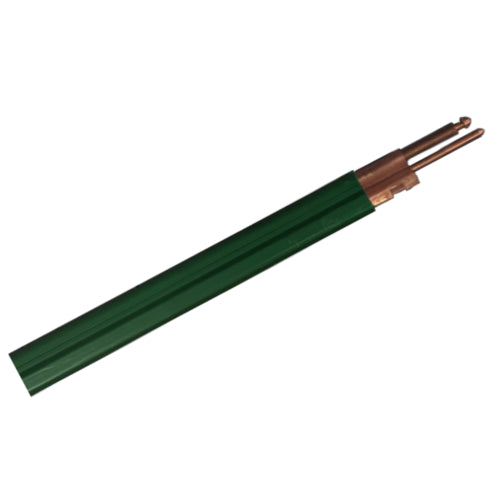

The CA300X10G is a ground conductor bar with a joint kit that is 10 feet in size. The bar is comprised of copper. This model is green in colour. This outdoor conductor bar safely transfers power to hoists, conveyers, cranes and monorails. Due to this product being apart of the Series C, it comes with a joint kit which simplifies the installation process. The bar itself has skin-tight insulation which runs cooler and will not deform under the pressure of clamping!

This product has a 300-ampacity range and has a 600 voltage limit. The metal guideways and the C shaped contact surfaces ensure positive tracking for the collector shoe, resulting in strong contact throughout the entirety of the system!

Product Features:

Bar Material: Electrolyte Copper

Normal Current (amps): 300

Max. Voltage: 600

DC Resistance (Ohms/ ft): 0.00008

AC impedance (Ohms/ft at 60Hz): 0.000110

Wt lb/ft (kg/m): 0.45
