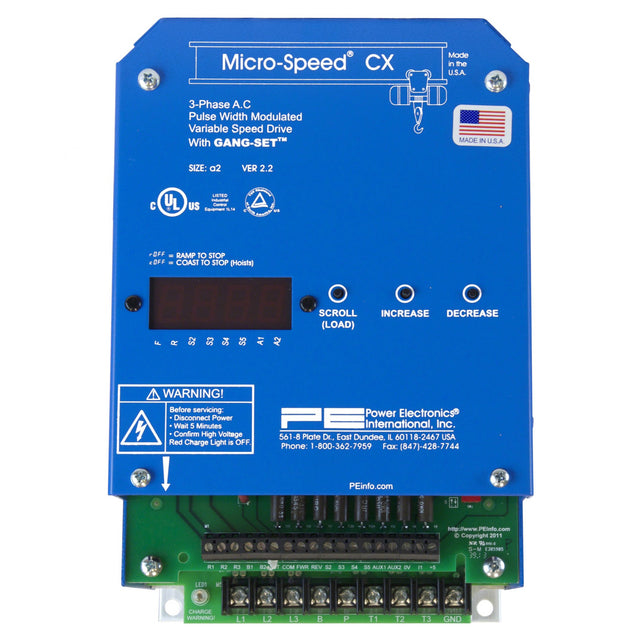

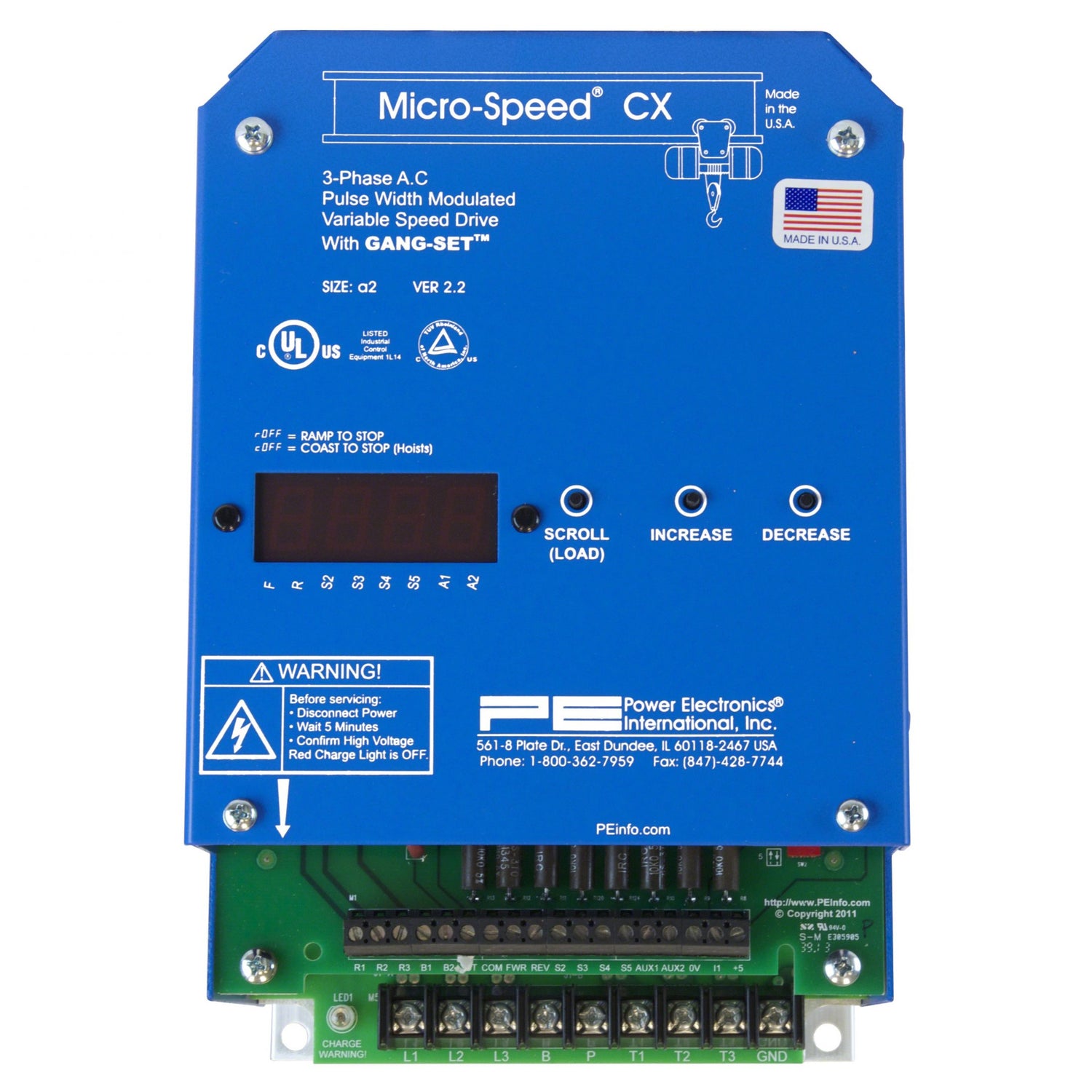

M1557CXR: 19 Amp 15HP 575V VFD

M1557CXR: 19 Amp 15HP 575V VFD

Power Electronics Micro-Speed CX is specifically designed for all cranes, hoists, trolleys, monorails, and other heavy-duty applications that require precise motor speed control.

The CXR model allows for rapid installation through its PE-Preset standard units. The M1557CXR saves you time and money through the elimination of brake wear through its ramp-to-stop deceleration!

Features:

• Controlled deceleration
• PE-Preset Standard units

*Note: external regen resistor is required. Visit this link for proper navigation toward the appropriate resistor for this model.

Technical Specifications:

Amperage: 19 A

HP: 15 (11 kW)

Line Voltage: 575 VAC

Certification: ETL/cETL Listed

Size: L (14”), W (12.31”), D (9.63”)

Weight: 35lbs
