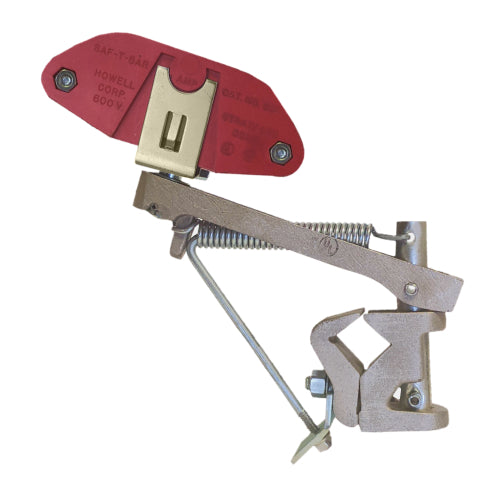

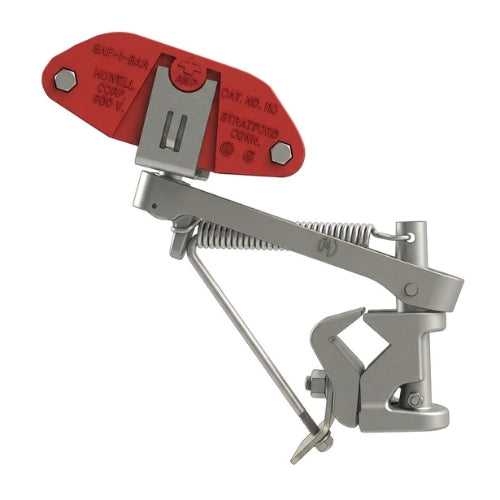

100C: 100 Amp High Heat Self Centering Standard Collector With Lead Wire (Obsolete)
[Code: IPC0400215]
100C: 100 Amp High Heat Self Centering Standard Collector With Lead Wire (Obsolete)
The 100C is a standard collector which is suitable for overall general applications of cranes and monorails.
The lightweight and light shoe pressure allow this collector to support a long wear. The 100C has a 2” vertical stroke and negotiates curves down to an 18” radius.
This high heat model is rated for 100amps and is accompanied with an alternate 100 head, allowing for the absorption of more heat.
This collector is self-centering and therefore it contains attachments to hold it in centre for high-speed applications, swaying hoists as well as discontinuous circuits.
In need of a component replacement? Navigate here for all Series C products!
