SAF-T-BAR Electrification  |  SKU: IPC0400239

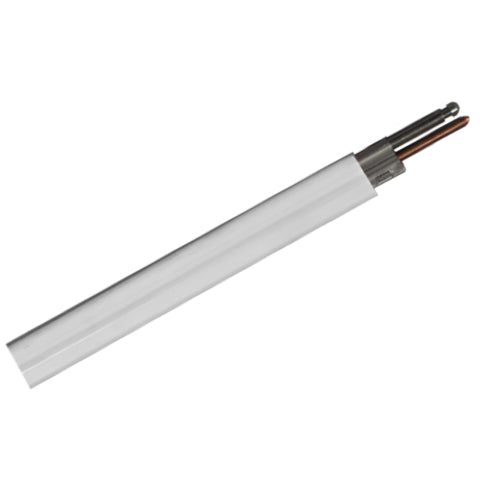

CA110W: 110 Amp Outdoor Conductor With Joint Kit x 10 feet (White)

$99.45 CAD
Shipping calculated at checkout.

Description

CA110W: 110 Amp Outdoor Conductor With Joint Kit x 10 feet (White), Click to read Shipping Policy

The CA110W is an outdoor conductor bar with a joint kit that is 10 feet in size. The bar is comprised of galvanized steel. This model is white in colour. This outdoor conductor bar safely transfers power to hoists, conveyers, cranes and monorails. Due to this product being apart of the Series C, it comes with a joint kit which simplifies the installation process. The unpredictable condition of outdoor weather is counteracted with a protective hood for additional protection!

This product has a 110-ampacity range and has a 600 voltage limit. The metal guideways and the C shaped contact surfaces ensure positive tracking for the collector shoe, resulting in strong contact throughout the entirety of the system. The bar itself has skin-tight insulation which runs cooler and will not deform under the pressure of clamping!

Product Features:

Bar Material: Galvanized steel

Normal Current (amps):110

Max. Voltage: 600

DC Resistance (Ohms/ ft): 0.00050

AC impedance (Ohms/ft at 60Hz): 0.000970

Wt lb/ft (kg/m): 0.48

Looking for a conductor bar specific for high heat? Check out the CA250HH!



Delivery and Shipping

Shipping calculated at checkout. View out shipping policy.
