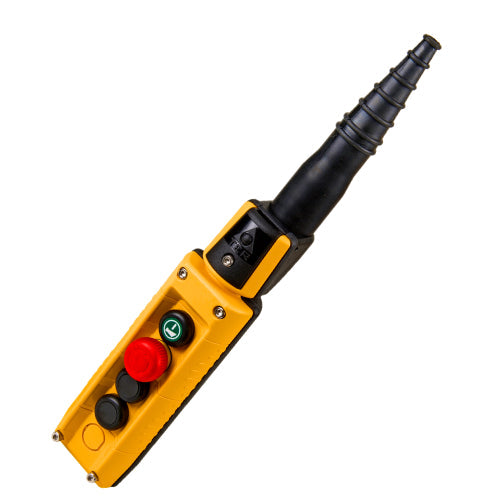

F70AY12000200001: 4 Button Mike Pendant Estop Reset and 2 x 2 Speed
This model has rubber components that specifically allow it to be weather resistant. There is a reduction in the installation time with cable entry and separate contact elements from the actuators.
This is a pendant that keeps your ergonomic needs in mind and is equipped with:
- 1 Normally Open (NO) Reset Alarm Button
- 1 Normally Closed (NC) Emergency Stop Mushroom Button
- 4 Normally Open (NO) contacts beneath 2 Black Buttons Mechanically Interlocked Between Pairs
- Operational Temperature: - -40°C/+80°C
- Mechanical Life: 1,000,000 operations
- Certifications: CE - (c)UL – EAC- SIL 1
- Ingress Protection: IP66/IP67/IP69K
- NEMA: Type 1, 4 and 4X
- Length: 201mm
- Operational Current: 3A
- Operational Voltage: 250V
In need of a replacement part or another MIKE Pendant? Navigate here!
