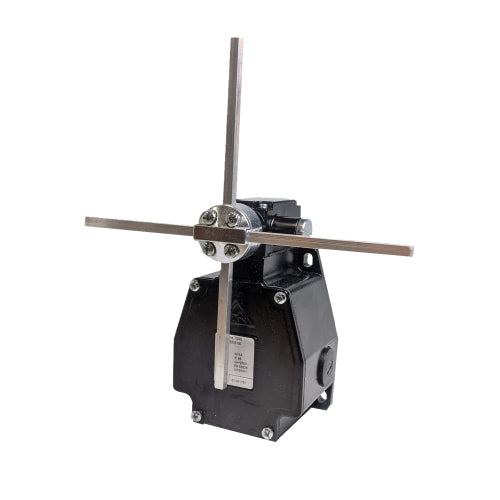

PF26755100: Cross Limit Switch For Slow Down and Stop In 2 Directions

PF26755100: Cross Limit Switch For Slow Down and Stop In 2 Directions

TER’s cross-position limit switches are engineered to control the movement of both traverse applications and machine tools with high complexity such as overhead cranes or hoists.

This switch is made with dust and water-resistant materials in order to ensure a long mechanical life and top tier performance.

The PF26755100 is a cross limit switch for slow down and stop in 2 directions.

Features:

• Opening: Snap action 1NO+1NC switch.  Positive opening NC contact for safety functions
• Mechanical Life: 1 million operations
• Temperature Resistance: -25°C to +70°C
• Certifications: CE - UL - (c)UL

Technical Specifications:

• Operation Frequency: max. 3600 operations/ hour
• Rated operational current: 3 A
• Rated operational voltage: 250 Vac
• Rated thermal current: 10 A
• Rated insulation voltage: 300 Vac

For dimensions visit this page
